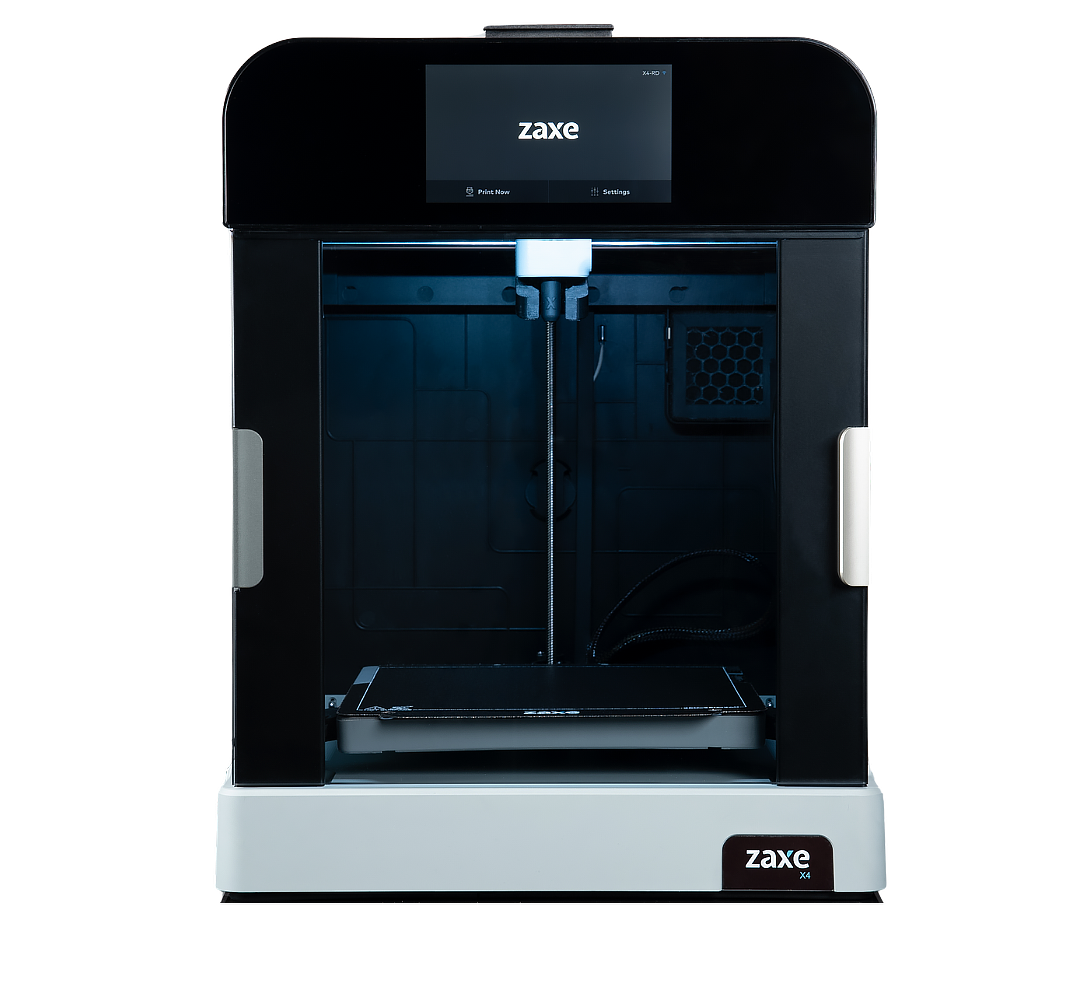

Zaxe X4 3D Printer
Zaxe X4: Reinvent Production with
Next-Gen 3D Printing!
The Zaxe X4 3D printer is a 4th-generation, high-performance solution engineered to
deliver exceptional precision, speed, and reliability. As the latest addition to the
renowned Zaxe X series, the X4 is designed to meet the needs of professionals and
businesses, offering cutting-edge technology and industrial-grade performance.
Easily produce your end products, spare parts and prototypes by taking control of your manufacturing line with the Zaxe X4 3D Printers.
Unmatched Printing Performance
● High-Speed & Precision – Up to 600 mm/s print speed and 20,000 mm/s² acceleration, setting new industry benchmarks.
● Supports PLA, ABS, ASA, PETG, PET-CF, TPU & Metal Infused Filaments.
● Extreme Temperature Printing – 350°C extruder temperature enables printing with advanced materials.
Advanced Hardware & Design
● AI-Powered Technology – Outperforms competitors with intelligent automation and smart error detection.
● Large Build Volume – 250x250x260 mm³, the largest in the X series.
● Durable, High-Quality Components – Designed for long-term, industrial-grade performance.
WIFI Connection
Capacitive Touch Screen
Powerful Processor
Core XY

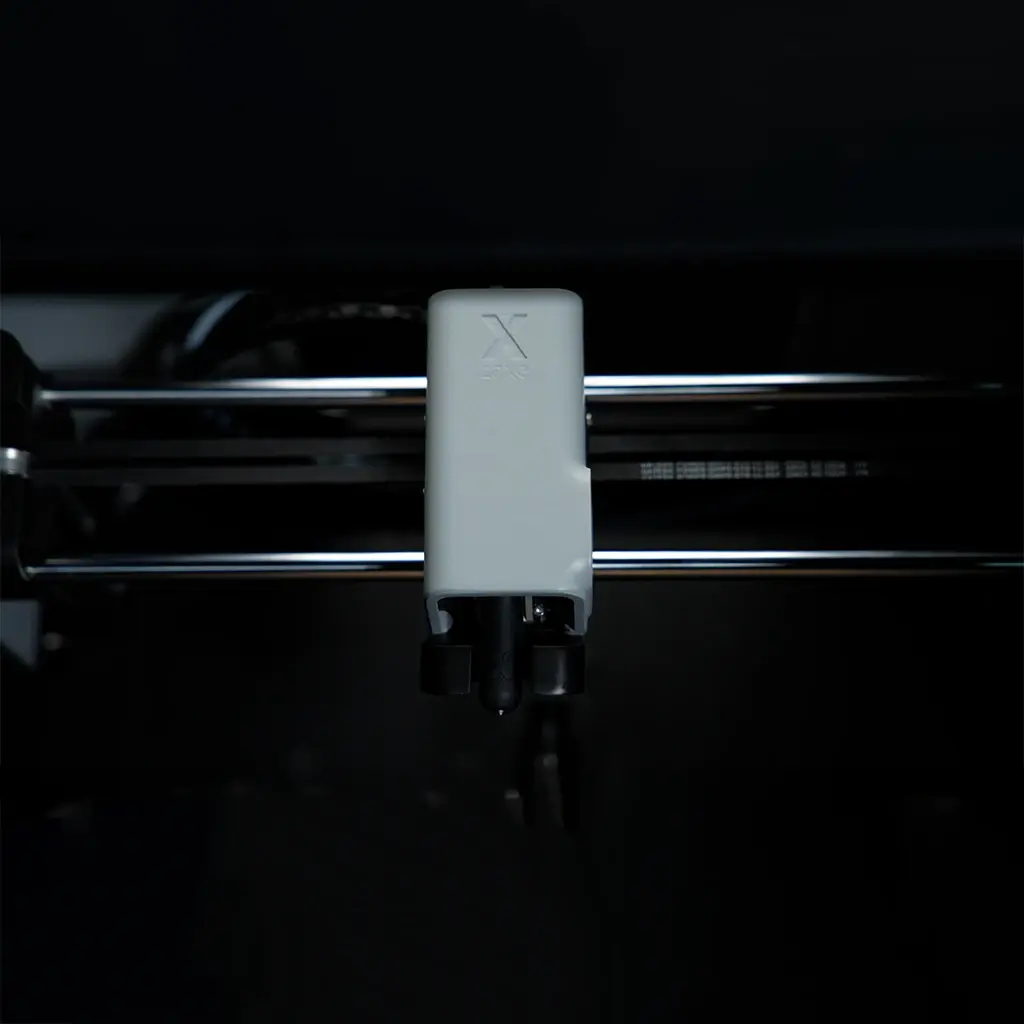

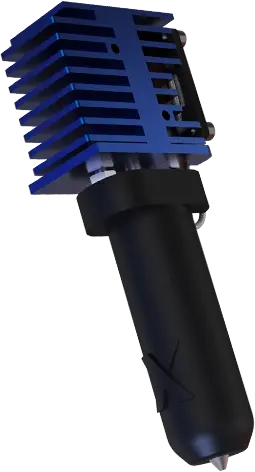

High Performance Printhead
The advanced printhead in Zaxe X4 3D Printer ensures optimal productivity with minimal risk of clogging, extending the device’s service life and delivering consistent 3D Print performance over time. It enhances the print speed.
High-Speed CoreXY Mechanical System
Experience superior 3D printing performance with Zaxe X4 3D Printer’s CoreXY Mechanical System, providing the speed, precision, and consistency needed to enhance your production efficiency during entire 3D Printing process.

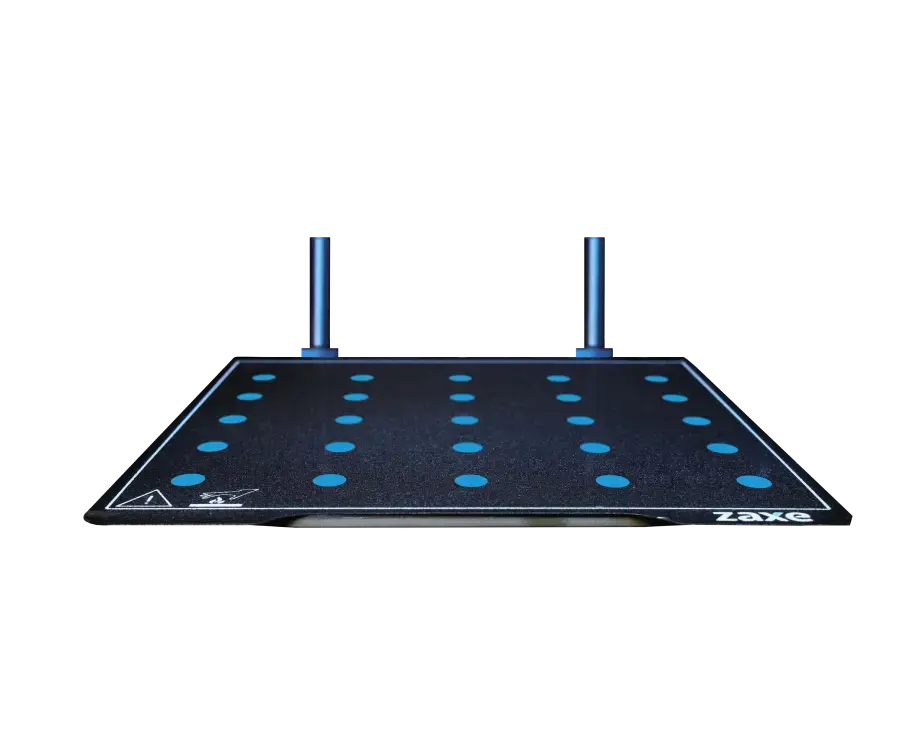

Fully Automatic Calibration
Zaxe X4 3D Printer’s fully automatic calibration system removes the guesswork, reducing errors and saving time, even for novice users which provides précised quality of 3D Printing. It makes Zaxe X4 3D Printer more compatible to user.

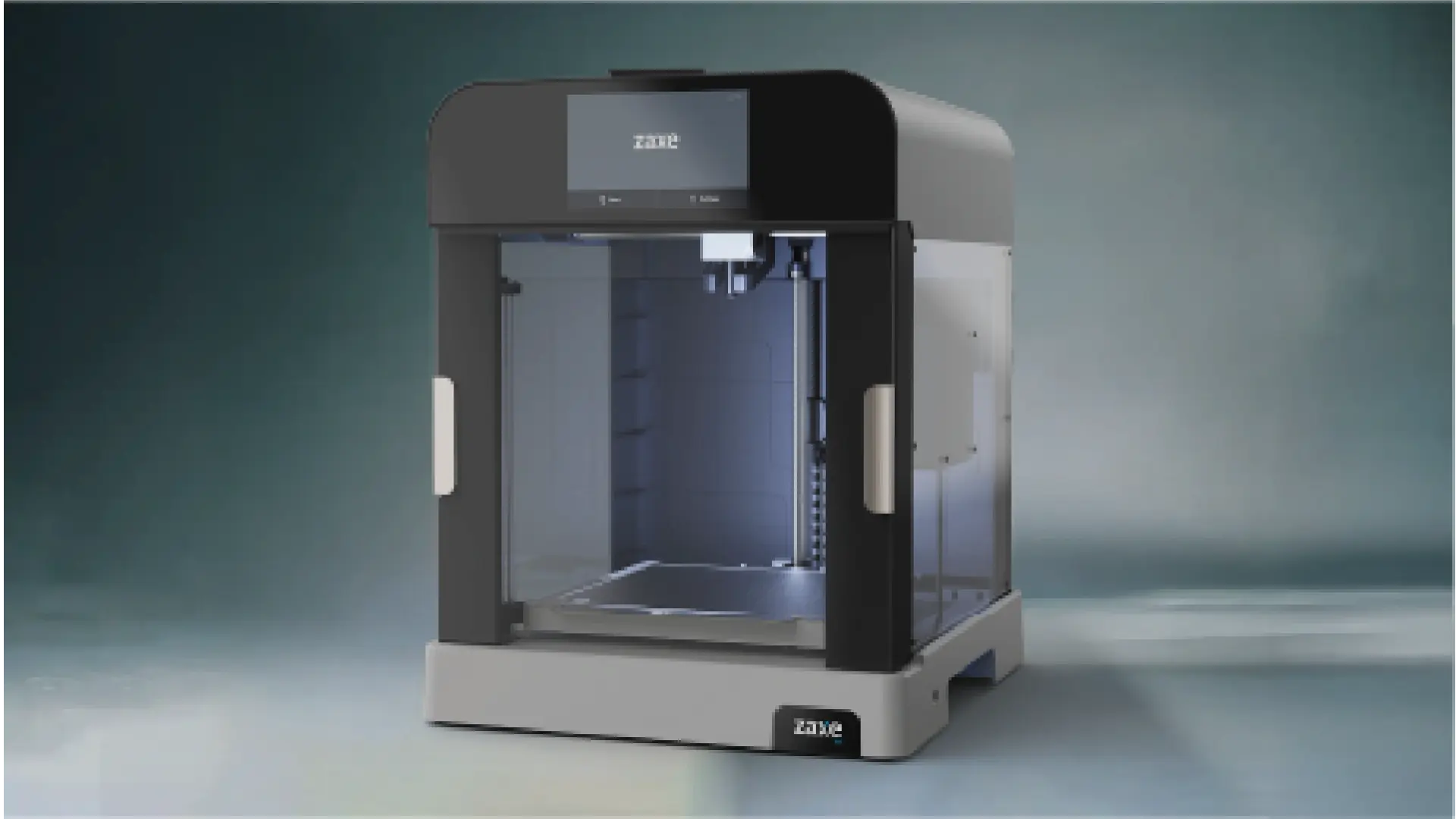

Robust Aluminum Frame
Vibration during high-speed 3D printing sessions decrease print quality. Zaxe X4 3D Printer has a body that is manufactured in one single piece. The stable frame reduces vibrations in printing sessions, guarantees better print quality every time.
3D Printer Specifications |
|
| Dimensions | 424 x 524 x 539 mm |
| Build Volume | 250 x 250 x 260 mm |
| Print Area | Closed, Heat Insulated |
| User Panel | 7″ Color Touch Screen |
| Printhead | Zaxe Print Head |
| Calibration | Hands-Free Fully Automatic |
| Camera | Yes/ AI Camera |
| Power Outage Protection | Yes |
| Filament Sensor | Yes |
| Filter | Carbon Filter |
Printing Properties |
|
| Nozzle Diameter | 0,25/0,4/0,5/0,6/0,8 mm |
| Layer Resolution | 50 – 800 Micron |
| Bed Material | Double Sided Flexible PEI Sheet |
| Bed Max Temp. | 120°C |
| Extruder Max Temp. | 350°C |
Software & Filaments |
|
| Software | xDesktop |
| Supported Files | .stl, .obj, .step, .stp, .amf, .3mf, .x3d |
| Supported Material | PLA, ABS, PETG, TPU, PLA-CF, PPS-CF, PET-CF, PA-CF, PA-GF, PC-ABS |
