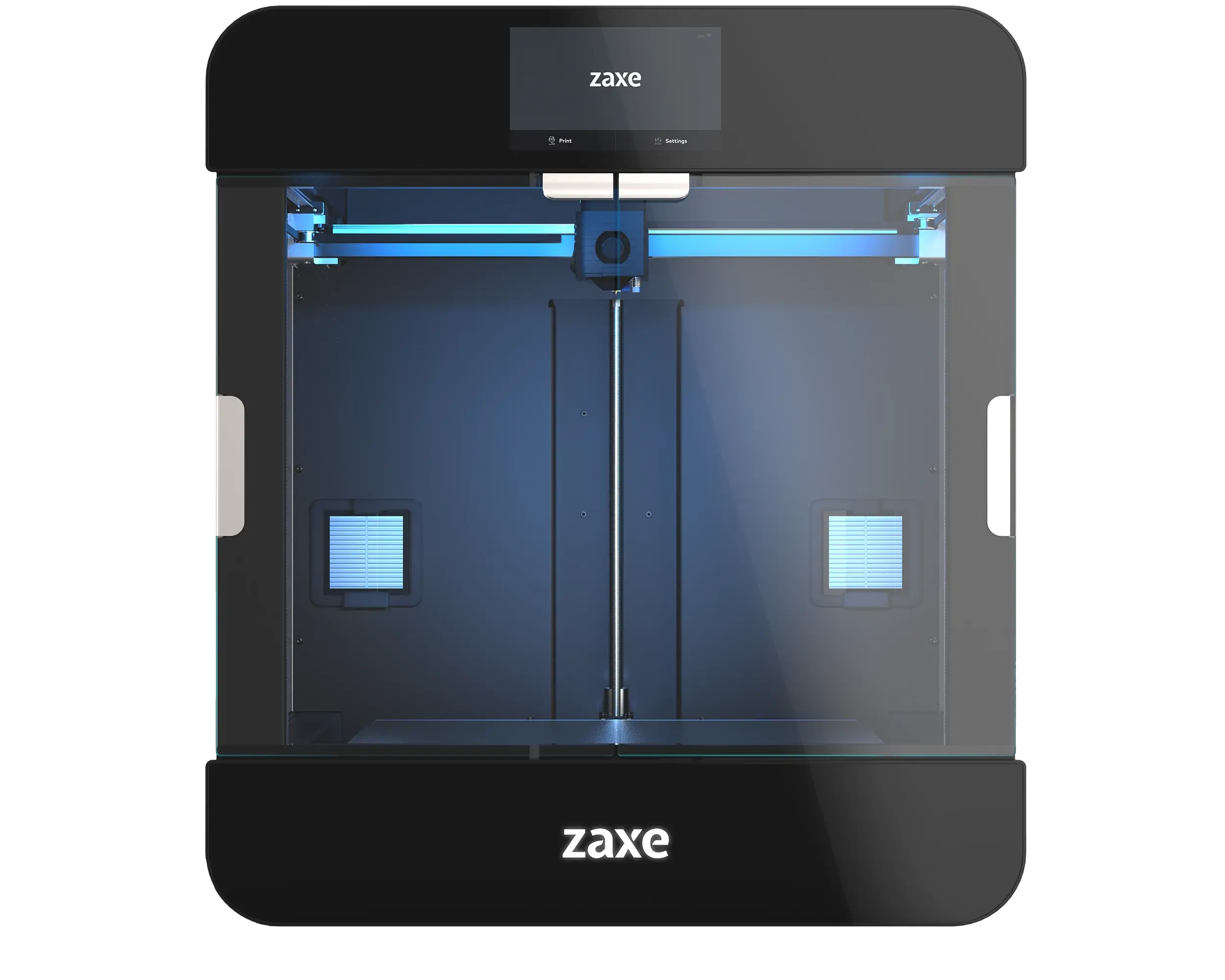

Zaxe Z3S 3D Printer

Zaxe FDM 3D Printer

Zaxe Z3S has Perfect 3D Printing Experience without compromising Fast

Thanks to E3D High Flow Hot End, AI Integrated Firmware, Core XY System and Passive Heated Chamber, Zaxe Z3S offers faster, precise and reliable printing without failure.

Easily produce your end products, spare parts and prototypes by taking control of your manufacturing line with the Zaxe Z3S 3D Printers. Zaxe Z3S 3D Printer is integrated with Klipper Filmware, it is the enforcer between Zaxe Z3S’s hardware and software. As Zaxe Z3S’s firmware, Klipper will improve print times, allow you to get better surfaces, and increase the precision of your 3D prints.

  • Motherboard

    At the heart of Zaxe Z3S, there is the zBoard. Equipped with a 32-bit processor and a Raspberry Pi 4B+, zBoard provides the power and speed that will carry your manufacturing efficiency to new heights.

  • Secure and Stable Connection

    Equipped with many security features to provide the safest 3D printing experience, zBoard includes a fuse for every possible scenario. Each connector is equipped with noise-canceling technology to give you a comfortable 3D printing experience.

  • Cooling System

    To prevent the motherboard from overheating during intense sessions, zBoard’s temperature is kept under control with its cooling system. Even after countless hours of 3D printing, the system will keep your zBoard cool under pressure.

WIFI Connection

Capacitive Touch Screen

3D Printing In Zaxe X4

Cloud Connection (Cloud X)

Powerful Processor

3D Printing In Zaxe X4

Core XY

3D Printing In Zaxe X4

Oscillations Recovery

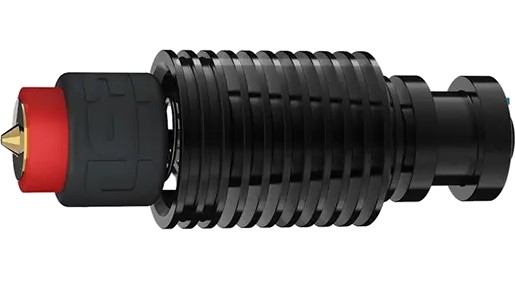

E3D Revo High Flow Printhead

Achieve optimal speed with E3D Revo High Flow update. E3D Print Heads prolongs your Z3S service life and allows you to rapid nozzle change at the same time and reliable performance, while 3D printing time will significantly shorten.

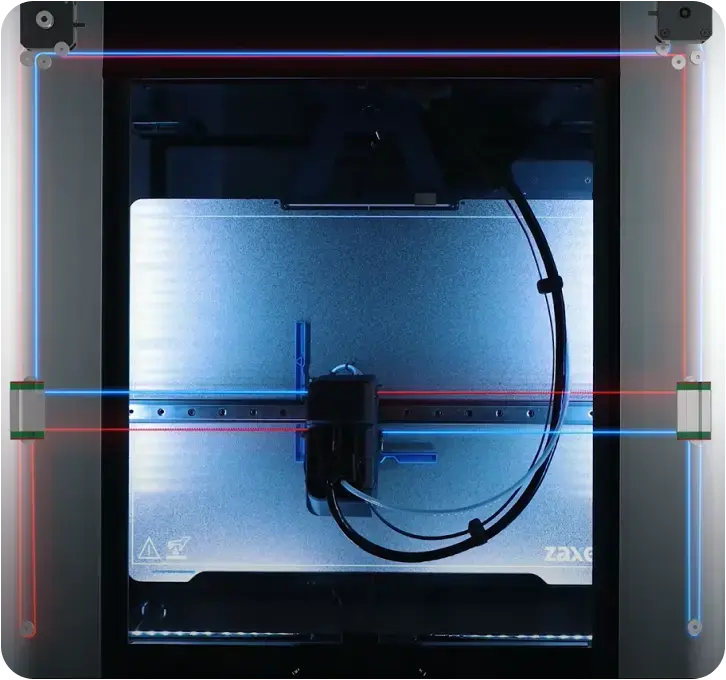

Innovative CoreXY Mechanical System

Experience the world-class 3D printing performance of Zaxe Z3S thanks to the innovative CoreXY Mechanical System. This 3D Printer provide you with the speed, precision, and consistency that you need to take your production next level.

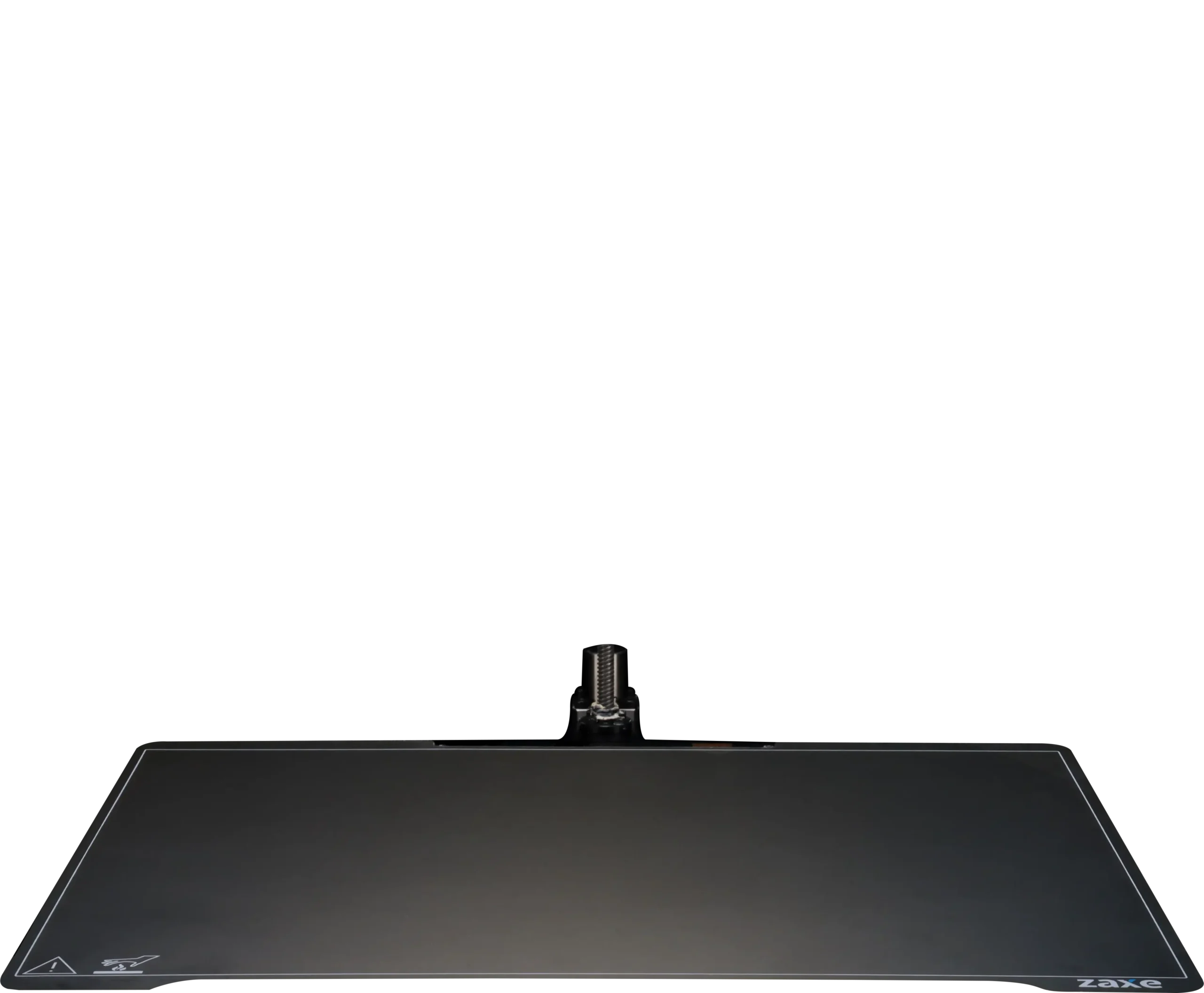

Fully Automatic Calibration

Zaxe Z3S’s fully automatic calibration system completely eliminates guesswork and reduces the margin of error. Even inexperienced users can achieve perfect calibration and save time when they use their 3D printer  for Printing prototypes.

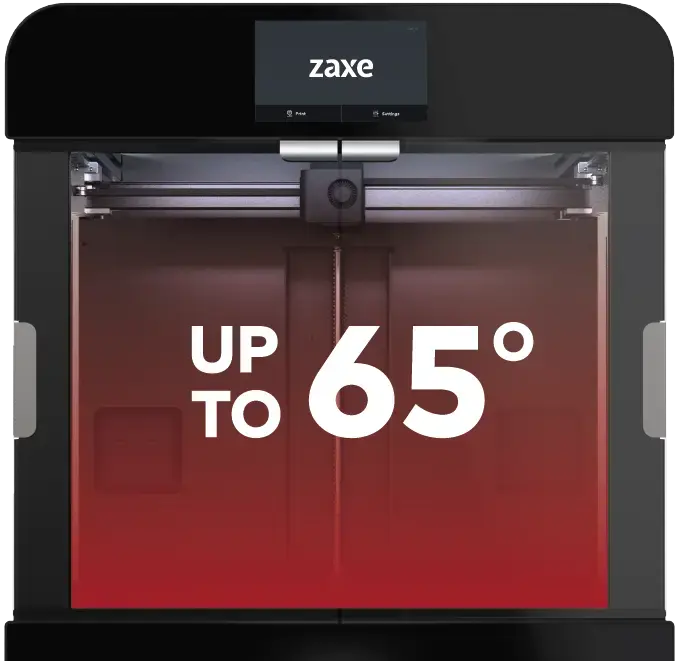

Passive Heated Chamber

Equipped with a fully enclosed passive heated chamber, Zaxe Z3S 3D Printer is able to keep the temperatures in the print area consistent, assuring better and more reliable results with every material type on the market it is most relaiable 3D Printer.

3D Printer Specifications
Dimensions 585 x 665 x 667 mm
Build Volume 400 x 300 x 350 mm
Print Area Closed, Heat Insulated
User Panel 7″ Color Touch Screen
Printhead Single, E3D Revo High Flow Printhead
Calibration Fully Automatic & Z Tilt
Camera Yes
Power Outage Protection Yes
Filament Sensor Yes
Filter HEPA + Carbon Filter

Printing Properties

Nozzle Diameter

0,4/0,6/0,8 mm

Layer Resolution

25 – 600 Micron

Bed Material

Double Sided, Flexible PEI Sheet

Bed Max Temp.

110°C

Extruder Max Temp.

300°C

Software & Filaments
Software xDesktop
Supported Files .stl, .amf, .gcode
Supported Material PLA, ABS, PETG, TPU, PET-CF15, Carbon Fiber Filament, and other abrasive filaments.
